Tug Fender

Tugboat Fenders are mainly used at all kinds of harbor tugboats, installed at bow, board and aft. Rubber Fenders adopts integral molding vulcanization workmanship to obtain good performance, long service life and easy installation.

Contact Us

General Details

Specification

Summary

Features

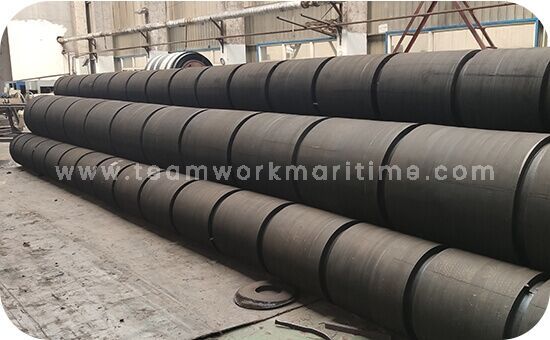

Tug cylindrical fenders are often used as the primary pushing fenders on the bow or stern of tugs, but are equally good for pushing flat-sided vessels. Tug fender can be fixed on the hull by the chain or straps, easey of installation. Tapered ends are also available.

Application

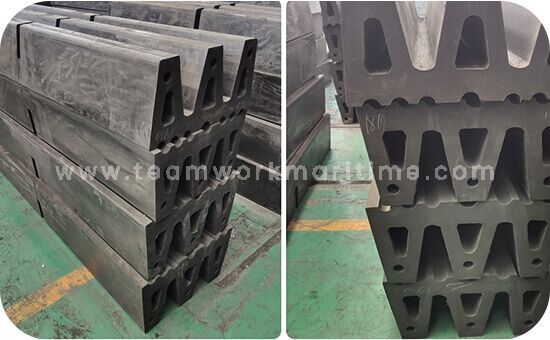

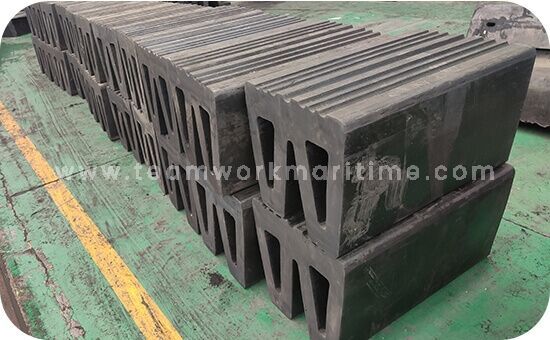

W-Fenders has a unique pen bore design which makes installation very simple. The flexible legs allow W-Fenders to be curved around most hull shapes. It have been developed for use as push-pads for tugs, and are also ideal for protecting the berthing section of a pontoon or bridge piles. M-Fenders have a large and flexible contact surface which exerts a low pressure during pushing operations. The triple legs give a strong attachment to the tug.

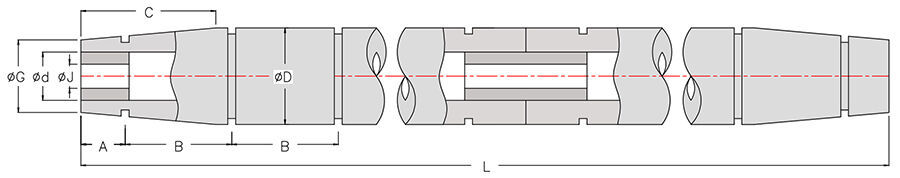

TEAMWORK Tugboat Fender
Size	ΦD	Φd	Amax	Bmax	C	ΦG	ΦJ
TW-TB250	250	125	200	570	500	190	75
TW-TB300	300	150	225	600	700	225	75
TW-TB350	350	175	250	650	800	250	85
TW-TB400	400	200	300	670	800	300	100
TW-TB450	450	225	300	700	850	350	100
TW-TB500	500	250	300	730	900	375	100
TW-TB600	600	300	350	800	900	450	125
TW-TB800	800	400	350	930	1000	600	125
TW-TB90	900	450	350	1000	1100	675	150
TW-TB1000	1000	500	350	1060	1200	750	150

Other spec. and sizes can be customized upon request. L=2000mm~26000mm

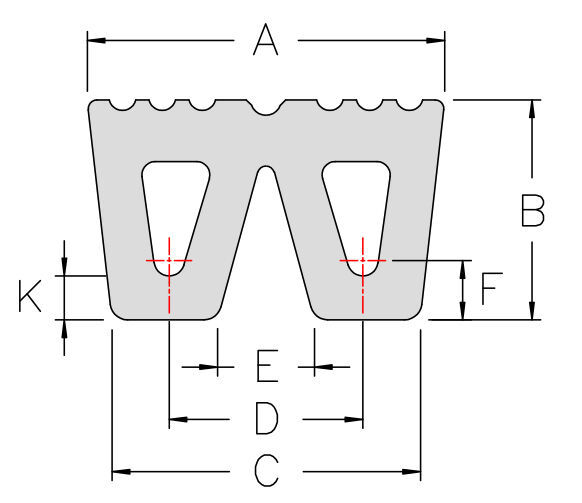

TEAMWORK W Fender
Type	A	B	C	D	E	F	K	LMax
TW-W32-20	320	200	280	180	100	67	50	3000
TW-W40-25	400	250	350	220	110	75	55	3000
TW-W48-30	480	300	420	270	145	90	65	3000
TW-W50-45	500	450	420	270	145	100	75	3000

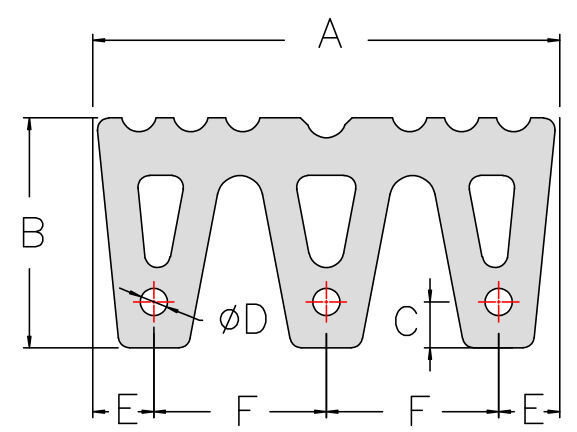

TEAMWORK M Fender
Type	A	B	C	ΦD	E	F	LMax
TW-M40-20	400	200	40	23	50	150	3000
TW-M50-25	500	250	50	27	60	190	3000
TW-M60-30	600	300	60	33	70	230	3000
