Donut Fender
Donut Fender

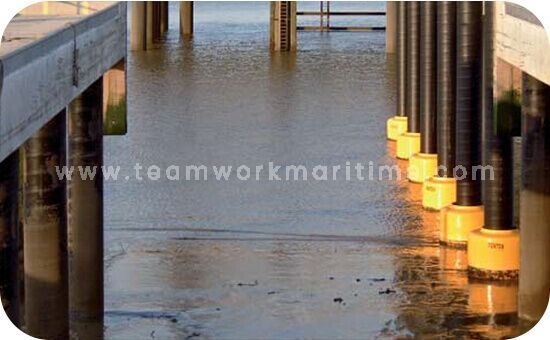

Donut Fenders are an effective solution for simple berthing dolphins, guiding and turning structures. The buoyant Donut floats up and down a single tubular pile and freely rotates to help align or redirect ships.
General Details
Specification


Summary

Donut Fenders are an effective solution for simple berthing dolphins, guiding and turning structures. The buoyant Donut floats up and down a single tubular pile and freely rotates to help align or redirect ships. The internal casing has longlasting, low-friction bearings which need minimal maintenance.

Features

● Freely rotates around a pile

● Rises and falls with water level

● Fast to install

● Requires minimal maintenance

● High performance

● Low hull pressures

● Will not mark ship hulls



Application

● Corner protection

● Turning structures

● Lead-in jetties

● Simple breasting dolphins

● Bridge protection


TEAMWORK Donut Fender

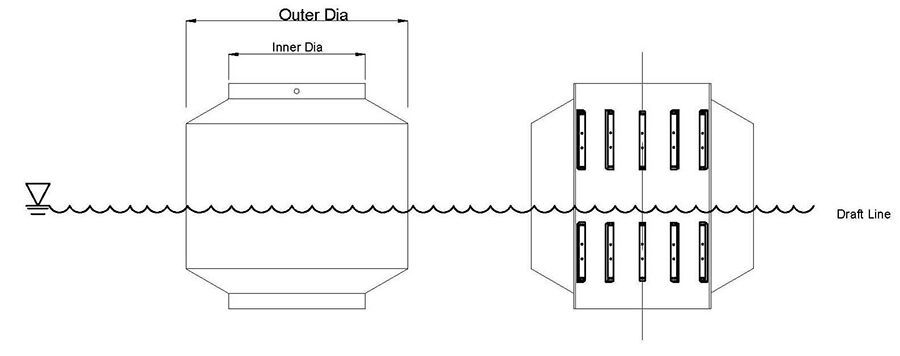

Pile Inner Diameter(m)Outer Diameter of Fender(m)Vertical Contact Face Height(m)Type AType B
Energy absorption (KNm)Reaction force     (KN)Energy absorption     (KNm)Reaction force     (KN)
0.51314.7224.624.5374.7
0.61.2213.7179.523.5300.2
0.61.2321.5269.634.3450.2
0.91.8115.7135.326.4224.6
0.91.8232.3269.751.9450.2
0.91.8348405.178.4674.9
1.252.5261.8374.7100.1624.8
1.252.5392.2562.1151937.8
1.252.54123.6750.4201.11249.7
1.53289.2450.2144.2750.4
1.533133.4674.9200.61125.2
1.534177.5899.7289.41509.7
242157.9600.3257999.6
243236.4899.5385.51499.9
244315.81199.7514.12000.3
