Arch Fender

Contact Us

General Details

Specification

Summary

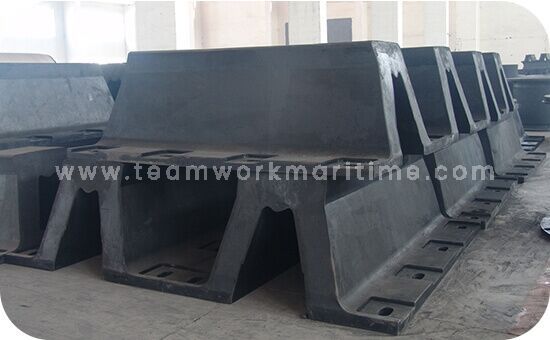

Arch Fenders have been consistently popular for many years. Their rugged construction, simplicity and versatility suit them to a wide variety of berths and wharves where they will give many years of trouble free service under even the most adverse of conditions. Arch fender can be either fitted with UHMW-PE face pad or connected to steel panel. Please see details in specification.

Features

● Simple one-piece design

● Strong and hard wearing

● Excellent shear performance

● Wide range of standard sizes

Application

● RoRo berths

● General cargo

● Workboat harbours

● Barge and tug berths

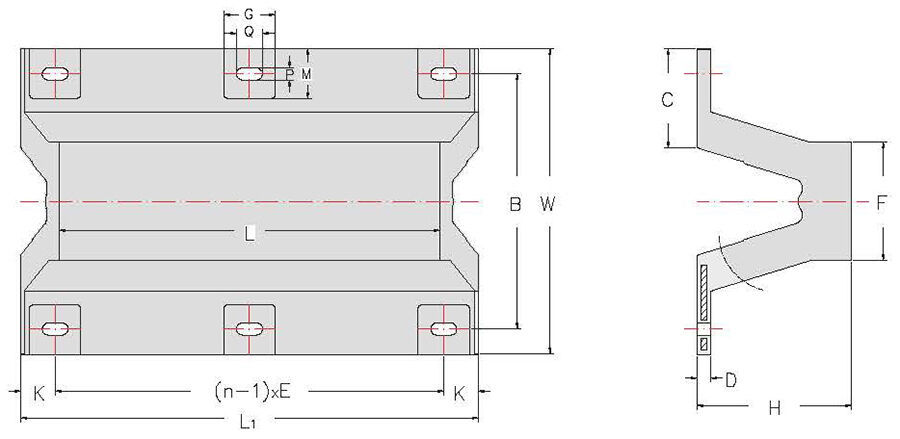

TEAMWORK Arch Fender
Specification	H	W	B	F	C	D	P	Q	M	G
TW-A150H	150	300	240	98	96	22.5	25	50	55	95
TW-A200H	200	400	320	150	128	24	29	58	75	105
TW-A 250H	250	500	410	164	160	30	32	64	90	125
TW-A 300H	300	600	490	225	195	33	35	70	105	140
TW-A 400H	400	800	670	300	260	40	41	82	120	165
TW-A 500H	500	1000	840	375	325	45	47	94	140	180
TW-A 600H	600	1200	1001	450	390	54	50	100	160	195
TW-A 800H	800	1600	1340	600	520	72	68	136	260	270
TW-A 1000H	1000	2000	1680	750	650	90	68	136	300	290

Specification	TW-A150H						TW-A 200H
L	1000	1500	2000	2500	3000	3500	1000	1500	2000	2500	3000	3500
L1	1075	1575	2075	2575	3075	3075	1100	1600	2100	2600	3100	3600
n	2	3	4	4	5	6	2	3	4	4	5	6
E	855	675	620	785	715	671	860	680	620	785	715	672
K	110	112.5	107.5	110	107.5	110	120	120	120	122.5	120	120

Specification	TW-A 250H						TW-A 300H
L	1000	1500	2000	2500	3000	3500	1000	1500	2000	2500	3000	3500
L1	1125	1625	2125	2625	3125	3625	1150	1650	2150	2650	3150	3650
n	2	3	4	4	5	6	2	3	4	4	5	6
E	865	680	620	790	715	673	870	685	625	790	715	674
K	130	132.5	132.5	127.5	132.5	130	140	140	137.5	140	145	140

Specification	TW-A 400H						TW-A 500H
L	1000	1500	2000	2500	3000	3500	1000	1500	2000	2500	3000	3500
L1	1200	1700	2200	2700	3200	3700	1250	1750	2250	2750	3250	3750
n	2	3	4	4	5	6	2	3	4	4	5	6
E	900	700	635	800	725	680	930	715	645	810	730	686
K	150	150	147.5	150	150	150	160	160	157.5	160	165	160

Specification	TW-A 600H						TW-A 800H
L	1000	1500	2000	2500	3000	3500	1000	1500	2000	2500	3000	3500
L1	1300	1800	2300	2800	3300	3800	1400	1900	2400	2900	3400	3900
n	2	3	4	4	5	6	2	3	4	4	5	6
E	960	730	655	820	740	692	1040	770	680	845	760	885
K	170	170	167.5	170	170	170	180	180	180	182.5	180	180

Specification	TW-A 1000H
L	1000	1500	2000	2500	3000
L1	1500	2000	2500	3000	3500
n	2	3	4	4	5
E	1100	800	700	860	775
K	200	200	200	210	200

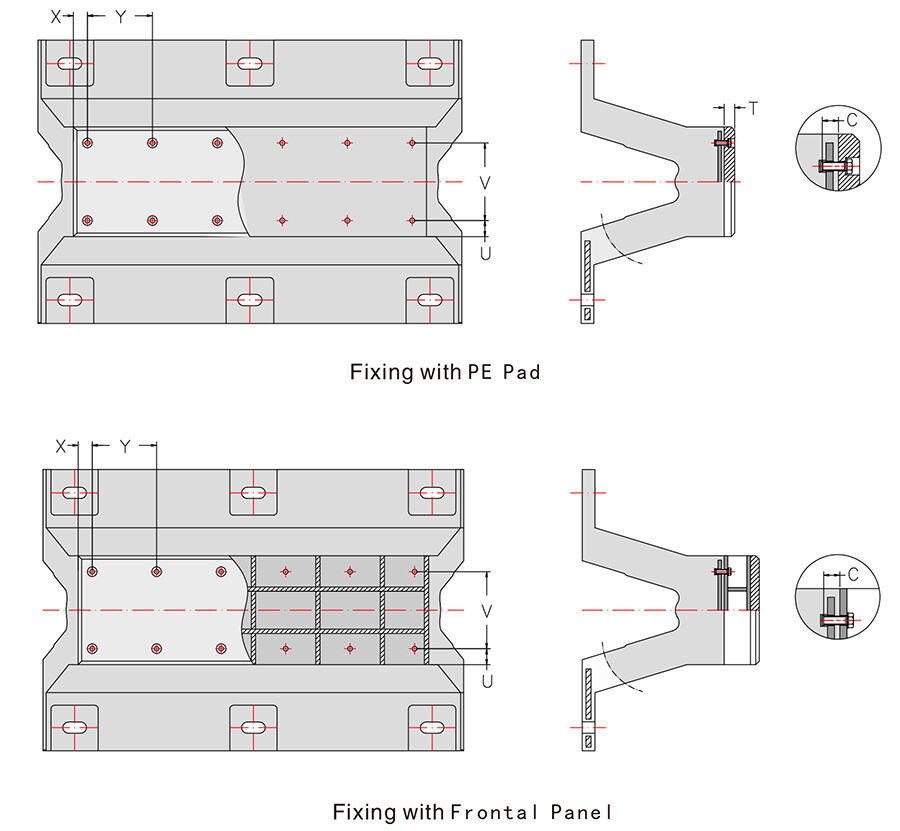

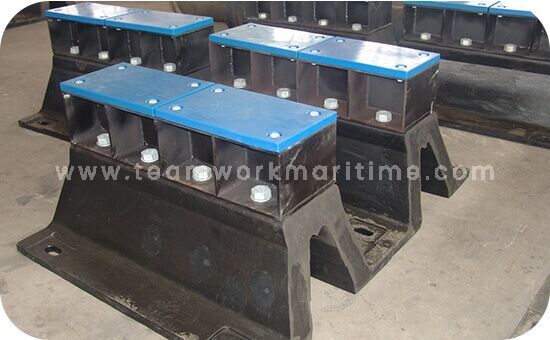

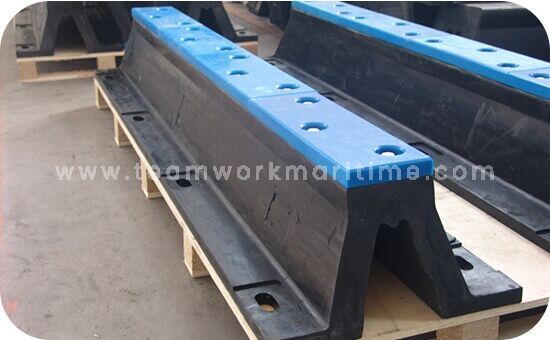

Arch Fender with Pad and Frontal Panel

Specification	U	V	C	F ac e P ad				S t eel F r am e
Specification	U	V	C	X	Y	T	Bolt	X	Y	Bolt
150H	49	0	20~30	60~70	300~410	30	M16	70~150	250~300	M16
200H	65	0	30~45	60~70	300~410	30	M16	70~150	250~300	M16
250H	50	64	30~45	60~85	300~410	30	M16	70~150	250~300	M20
300H	60	105	30~45	65~85	300~410	40	M16	70~150	250~300	M24
400H	60	180	30~50	65~85	300~410	40	M16	70~150	250~300	M27
500H	65	245	30~50	65~85	300~410	50	M20	70~150	250~300	M30
600H	70	310	35~60	65~85	300~410	50	M20	70~150	250~300	M30
800H	80	440	50~70	65~85	300~410	60	M24	70~150	250~300	M36
1000H	90	570	50~70	65~85	300~410	60	M24	70~150	250~300	M36
