Ship Launching Airbag

TEAMWORK ship rubber airbag comply with ISO 14409. Ship airbag can be used to launch and upgrade a ship up to 100,000DWT.

Contact Us

General Details

Structure

Specification

Launching Procedure

Airbags Safety & storage

Summary

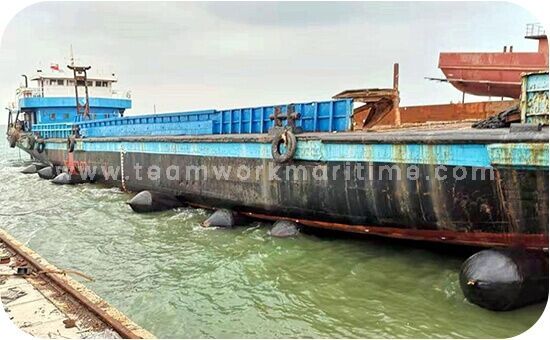

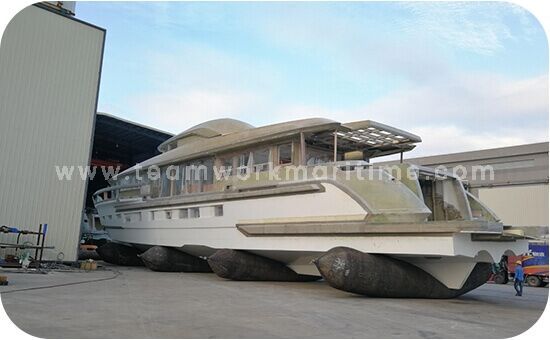

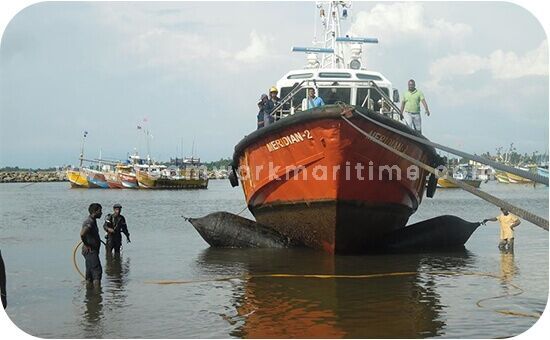

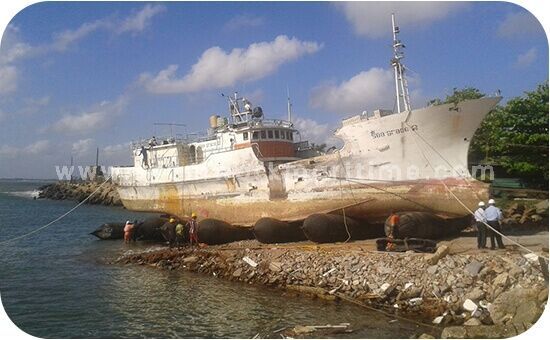

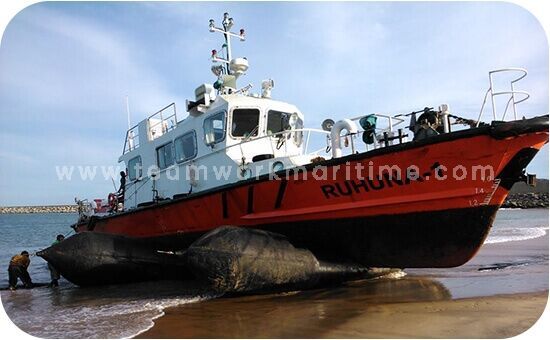

Ship Launching Airbags, also known as roller bags or ship launching balloon, are made of heavy-duty synthetic-tire-cord layers with inner and out rubber layers in long cylindrical balloon shape. Ship launching airbags can be used for the ship launching or ship landing of tanker, tugboat or barges, carrying vessel, carrier, ferry and other special vessels (AHTS, DSV) and so on. The biggest vessel launched by ship launching airbags up to 100,000 DWT.

Advantage

Ship launching relying on ship launching airbags is a innovative ship launching technology, comparing with “end-on launching”, “side ship launching”, “float-out”. This ship launching technology overcomes the restrictions of fixed launching track of side-launch. Ship launching airbags are accepted by more more shipyard world wide because of its advantages of saving time, saving investment, flexible, safety.

Application

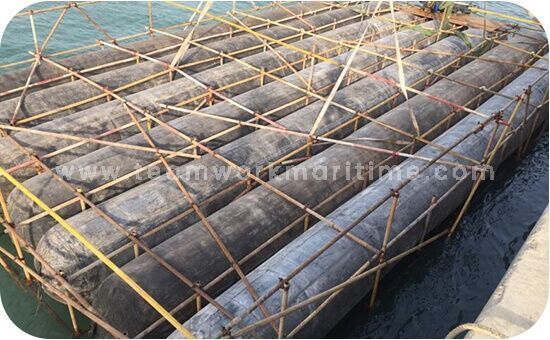

Now the marine airbag for ship launching are widely used for hoisting and transporting heavy structure, refloatation, salvaging sunken ship or heavy immersed steelstructure, erecting floating bridge or pipeline in the marine field and shipyards.

Structure of the TEAMWORK marine airbags

Please check TEAMWORK inflatable rubber airbag structure as below. It is composed by airbag body and terminal iron part. The airbag body is composed by natural rubber and strength fiber material through vulcanization processing; The terminal iron part is made of cast iron, it is combined closely with the bag body; One end is for pulling when move the airbag, and the other end is for charging and discharging the air.

"TEAMWORK" Marine Rubber Airbags' structure is consists of the outer rubber layer synthetic cord reinforced rubber layers and inner rubber layer.

Its shape characteristics: central body cylindrical + tapered on both ends. Cord layers:4,5,6,7,8,9,10,1ayers

Accessories: Pressure gage, Inlet valve, Pipe fitting and seal end ring..

Materials

An airbag is to be constructed of an outer rubber layer, one or more synthetic-tyre-cord layers, and an inner rubber layer. The arrangement of synthetic-tyre-cord reinforcement layers is shown in the picture below, all materials shall be vulcanized firmly.

Prior to the airbag production, the outer and inner rubber layers shall be tested to meet criteria in the following table in accordance with the test methods given in the international standard list in the table. While only one satisfactory sample per batch is required for test numbers 1 through 3, all others must be tested for test numbers 4 through 9 annually. If the first sample fails, two additional sample should be tested. If the additional samples pass the test requirements, the materials will be deemed to have passed the test. Otherwise, the materials will be deemed to have failed the test and another batch of materials shall be selected.

Qingdao Teamwok Marine Airbags
Size Range:(airbag size depends on ship size)
Diameter（D）：				From 0.6m to 2.8m
Effective Length（EL）：				From 5.0m to 25.0m
Total Length（TL）：				From 7.0m to 28.0m
Standard Number of Layers:				Usually 4-10 layers
Guaranteed Working Pressure
Type	D=0.8m	D=1.0m	D=1.2m		D=1.5m	D=1.8m	D=2.0m
TW3 layers	0.13Mpa	0.10 Mpa	0.09 Mpa		0.07 Mpa	0.06 Mpa	0.05 Mpa
TW4 layers	0.17 Mpa	0.13 Mpa	0.11 Mpa		0.09 Mpa	0.08 Mpa	0.07 Mpa
TW5 layers	0.21 Mpa	0.17 Mpa	0.14 Mpa		0.11 Mpa	0.09 Mpa	0.08 Mpa
TW6 layers	0.25 Mpa	0.20 Mpa	0.17 Mpa		0.13 Mpa	0.11 Mpa	0.10 Mpa
TW7 layers	0.29 Mpa	0.23 Mpa	0.20 Mpa		0.15 Mpa	0.13 Mpa	0.12 Mpa
TW8 layers	0.33 Mpa	0.26 Mpa	0.23 Mpa		0.17 Mpa	0.15 Mpa	0.14 Mpa
TW9 layers	0.37 Mpa	0.29 Mpa	0.26 Mpa		0.19 Mpa	0.17 Mpa	0.16 Mpa
TW10 layers	0.41 Mpa	0.32 Mpa	0.29 Mpa		0.21 Mpa	0.19 Mpa	0.18 Mpa

Procedure of Launch a ship by rubber airbags

1.Pre-launch preparation work for shipyard

Slipway Enhancement

Water survey

Vessel skeg enhancement

Ground anchor

Seal thruster holes if there are.

2.Basic equipments needed for ship launching

Rigging equipments: Winch, Pulley, Swivel, Lug, Shackle, Wire sling, Ground Anchor

Inflate equipments: Air Compressor, Inflating Pipe

Airbag moving equipments: Forklift, mobile crane

3.Crew preparation

4.Rigging Arrangements

5.Lifting the blocks

6.Move vessel forward

7.Vessel Launching

1.Ship

The engineering work under water line shall wholly be finished, especially those equipments, valves and others that are to be installed at the openings under ship waterline, the installations should be approved by inspection. All the burrs, welding beading and the like on the ship bottom or appendages should be ground away. All the welds on the shell plate must pas inspection and tightness test. The main dimensions of the ship should be measured up and the mark of loadline must pass inspection. All the paint work of the shell plate has been finished.

2.Ramp way

The ramp way on which the airbags will rolling should be cleaned and be clear of sharp fends such as iron nail. The ramp way should be leveled and the level error from left to right should less than 80mm. The ground caved in should be filled up and the ground bearing capacity should be relatively equalized. The ramp made of mud land, sanded land, sands or concrete, however, its bearing capacity should be twice as big as the working pressure of airbags. The slope of ramp is to be determined according to the size of the launching ship and is generally no bigger that 1/7. In the range of the whole length of the ramp way, the shape may be of multiple combination with slope line, are line and others. However, the ship bottom should not contact the ground even when the airbags are at their lowest working height. The ramp way should extend into water for certain length.

3.Winch

In general, a slow winch is to be selected, its veering speed is about 9-13/m/min. The moving speed of a ship must not be more than 6m/min with the control of hauling force of winch wire. If the ship weight is less than 200t, the moving speed can be increased properly. The wire must be inspected and replaced regularity.

4.Air compressor

The type and capacity of the air compressor is to be selected according to the total volume of all the airbags provided for the launching and time required for air filling and the air pressure. The gas tank of air compressor should be installed with adjustable pressure limiting valve.

Safety precaution

● Over pressure Control:

Strictly control the operating pressure, over pressure is forbidden.

● The Landing Slipway Requirements:

The landing ground should be ground or cement concrete, according the tonnage of different ships.

● Avoid Sharp Objects:

Make sure no sharp objects and make sure the smooth and clean ground during using them in case of break of airbag.

● Avoid Distortion And Overweight

Avoid distortion in the length direction during rolling and avoid overweight load after gas charging.

Storage

● When the airbags are not to be used for a long time, they should be drained, cleaned, dried, filled with talc power, and the exterior surfaces should be coated with talc power.

● The airbags should be maintained in a dry ventilated room and be protected from light.

● The airbags should be in a relaxed condition free from tension, compression or other deformation.

● The airbags should be kept away from any heat source.

● The airbags should be protected from acids, alkalis, oils or organic solvents.
