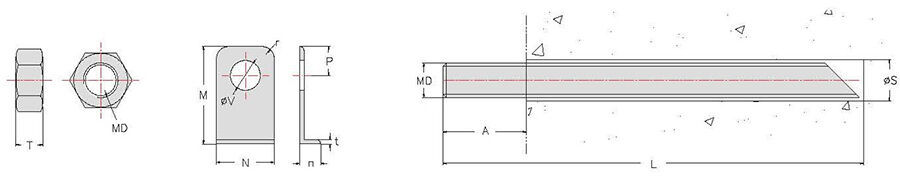

Resin/Chemical Bolt：Used for installing fenders onto existing concrete or where cast-in anchors are unsuitable.
| Anchor Bolt | Nut | L-Washer |
| MD | A | L | ΦS | T | m | n | N | P | t | V | r |
| M24 | 60 | 280 | 30 | 22 | 60 | 22 | 83 | 25 | 5 | 28 | 15 |
| M30 | 70 | 360 | 38 | 26 | 65 | 20 | 110 | 33 | 5 | 34 | 15 |
| M33 | 75 | 400 | 42 | 28 | 70 | 25 | 117 | 35 | 5 | 36 | 15 |
| M39 | 85 | 460 | 50 | 32 | 80 | 26 | 148 | 40 | 6 | 43 | 25 |
| M42 | 95 | 510 | 55 | 34 | 85 | 28 | 151 | 43 | 6 | 46 | 25 |
| M45 | 105 | 550 | 60 | 36 | 90 | 31 | 153 | 45 | 6 | 49 | 30 |
| M52 | 115 | 630 | 65 | 42 | 100 | 31 | 158 | 50 | 6 | 56 | 30 |
| M52 | 115 | 630 | 65 | 42 | 100 | 34 | 158 | 50 | 6 | 56 | 30 |
| M56 | 125 | 680 | 68 | 45 | 110 | 40 | 165 | 55 | 8 | 63 | 30 |
| M64 | 130 | 780 | 75 | 51 | 116 | 38 | 165 | 58 | 8 | 70 | 40 |
| M64 | 140 | 780 | 75 | 51 | 120 | 43 | 195 | 60 | 8 | 70 | 40 |
| M64 | 150 | 780 | 75 | 51 | 125 | 50 | 202 | 65 | 10 | 70 | 50 |
| M76 | 180 | 940 | 88 | 64 | 140 | 55 | 207 | 70 | 10 | 84 | 50 |

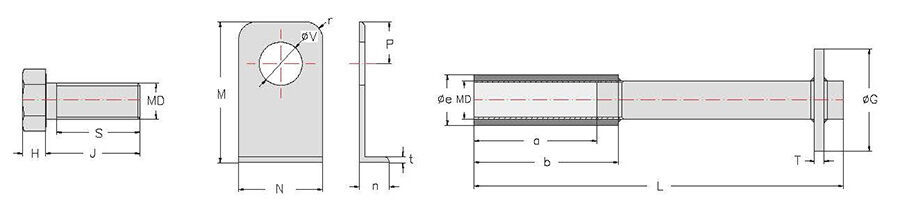

Pre-Bulilt-In Accessories:Used for installing fenders to new concrete
| Hex Bolt | L-Washer | Anchor Nut | Anchor Rod , plate |
| MD | H | J | S | N | n | M | P | t | V | r | a | b | e | T | L | G |
| M24 | 17 | 70 | 55 | 60 | 22 | 83 | 25 | 5 | 28 | 15 | 75 | 100 | 36 | 6-10 | 300 | 75 |
| M30 | 19 | 75 | 60 | 65 | 20 | 110 | 33 | 5 | 34 | 15 | 75 | 105 | 38 | 8-12 | 330 | 85 |
| M33 | 23 | 85 | 70 | 70 | 25 | 117 | 35 | 5 | 36 | 15 | 85 | 120 | 42 | 8-12 | 360 | 85 |
| M39 | 26 | 95 | 75 | 80 | 26 | 148 | 40 | 6 | 43 | 25 | 85 | 125 | 49 | 8-12 | 430 | 95 |
| M42 | 26 | 100 | 80 | 85 | 28 | 151 | 43 | 6 | 46 | 25 | 85 | 125 | 55 | 12-16 | 500 | 105 |
| M45 | 30 | 110 | 90 | 90 | 31 | 153 | 45 | 6 | 49 | 30 | 95 | 140 | 59 | 12-16 | 500 | 125 |
| M52 | 35 | 120 | 95 | 100 | 31 | 158 | 50 | 6 | 56 | 30 | 100 | 150 | 69 | 12-16 | 570 | 135 |
| M52 | 35 | 120 | 95 | 100 | 34 | 158 | 50 | 6 | 56 | 30 | 100 | 150 | 69 | 12-16 | 570 | 140 |
| M56 | 35 | 135 | 110 | 110 | 40 | 165 | 55 | 8 | 63 | 30 | 105 | 165 | 75 | 16-20 | 620 | 140 |
| M64 | 40 | 150 | 125 | 116 | 38 | 165 | 58 | 8 | 70 | 40 | 125 | 190 | 79 | 16-20 | 700 | 150 |
| M64 | 40 | 150 | 125 | 120 | 43 | 195 | 60 | 8 | 70 | 40 | 125 | 190 | 79 | 16-20 | 700 | 150 |
| M64 | 40 | 170 | 125 | 125 | 50 | 202 | 65 | 10 | 70 | 50 | 125 | 190 | 79 | 16-20 | 700 | 175 |
| M76 | 50 | 190 | 145 | 140 | 55 | 207 | 70 | 10 | 84 | 50 | 135 | 210 | 95 | 20-24 | 800 | 175 |
