Cylindrical Fender
Cylindrical Fender
Cylindrical Fenders have protected ships for more years than any other fender type. Cylindrical fenders are simple and versatile as well as being easy to install.
General Details
Specification


Summary

Cylindrical Fenders have protected ships for more years than any other fender type. Cylindrical fenders are simple and versatile as well as being easy to install. Their progressive reaction makes them ideal for berths serving large and small vessels. The wide range of available sizes (as well as almost any intermediate size)means Cylindrical Fenders can be closely matched to each application.

Features

● Simple and economical design

● Easy to install and maintain

● All sizes up to 2700mm diameter

● Thick wall resists abrasion and wear

● Progressive load-deflection curve



Application

● Bulk cargo berths

● General cargo quays

● RoRo and ferry terminals

● Fishing and workboat berths

● Pontoons and floating structures

● Tug havens



TEAMWORK Cylindrical Fender

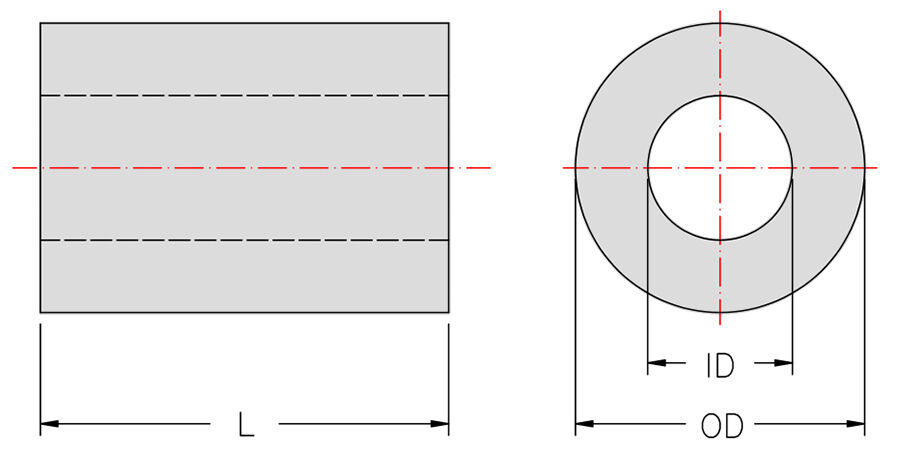

Specification OD×ID(mm)Standard Reaction ForceHigh Reaction ForceLength
R (KN)E(KNm)R (KN)E(KNm)
Ø150×Ø 75441.5732.3All length can be supplied to meet the customers’ request
Ø 200×Ø 100602.6954.2
Ø 250×Ø 1257541206.5
Ø 300×Ø 1508961439
Ø 350×Ø 175104816713
Ø 400×Ø 2001191019117
Ø500×Ø 2501481623926
Ø 600×Ø 3001792428637
Ø 700×Ø 3502083133450
Ø 800×Ø 4002374138366
Ø 900×Ø 4502685243084
Ø 1000×Ø 50029764479103
Ø 1100×Ø 55033177528129
Ø 1200×Ø 60036395574152
Ø 1300×Ø 650392108623179
Ø 1400×Ø 700422128670208
Ø 1500×Ø 750451147718238
Ø 1600×Ø 800481176776282
Ø 1700×Ø 850511206824338
Ø 1800×Ø 900541247872406
Ø 1900×Ø 950570288920487
Ø 2000×Ø 10006533211054584
