Structure of the TEAMWORK marine airbags

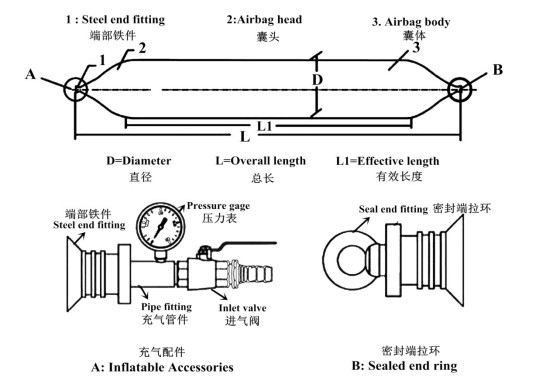

Please check TEAMWORK inflatable rubber airbag structure as below. It is composed by airbag body and terminal iron part. The airbag body is composed by natural rubber and strength fiber material through vulcanization processing; The terminal iron part is made of cast iron, it is combined closely with the bag body; One end is for pulling when move the airbag, and the other end is for charging and discharging the air.
"TEAMWORK" Marine Rubber Airbags' structure is consists of the outer rubber layer synthetic cord reinforced rubber layers and inner rubber layer.
Its shape characteristics: central body cylindrical + tapered on both ends. Cord layers:4,5,6,7,8,9,10,1ayers
Accessories: Pressure gage, Inlet valve, Pipe fitting and seal end ring..
Materials

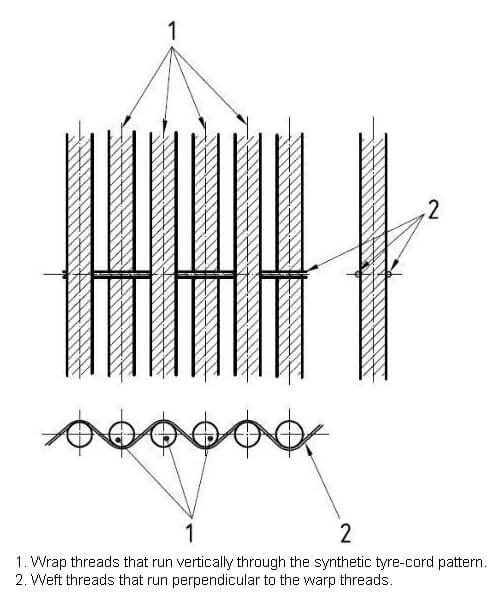

An airbag is to be constructed of an outer rubber layer, one or more synthetic-tyre-cord layers, and an inner rubber layer. The arrangement of synthetic-tyre-cord reinforcement layers is shown in the picture below, all materials shall be vulcanized firmly.

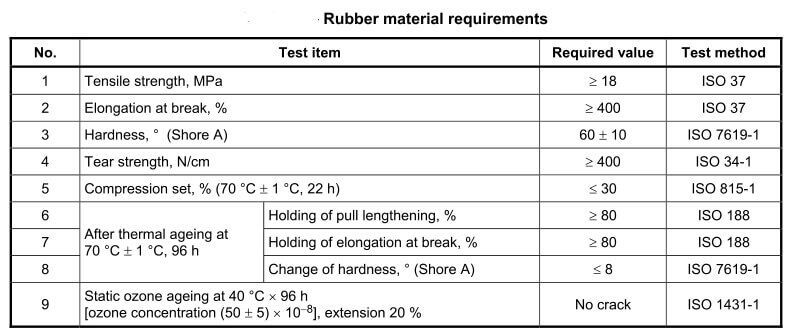

Prior to the airbag production, the outer and inner rubber layers shall be tested to meet criteria in the following table in accordance with the test methods given in the international standard list in the table. While only one satisfactory sample per batch is required for test numbers 1 through 3, all others must be tested for test numbers 4 through 9 annually. If the first sample fails, two additional sample should be tested. If the additional samples pass the test requirements, the materials will be deemed to have passed the test. Otherwise, the materials will be deemed to have failed the test and another batch of materials shall be selected.
Performance of Heavy Lifting Airbags

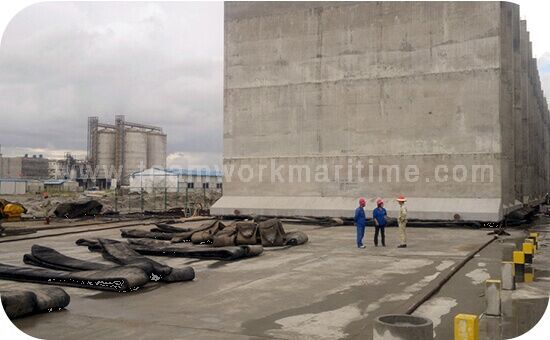

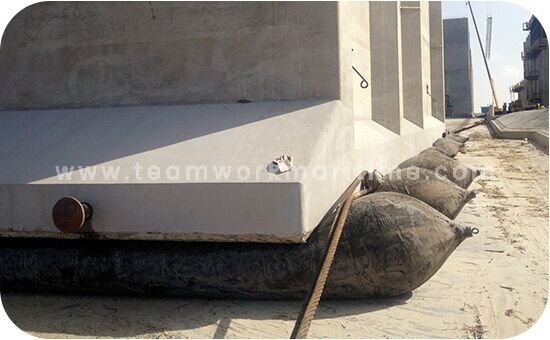

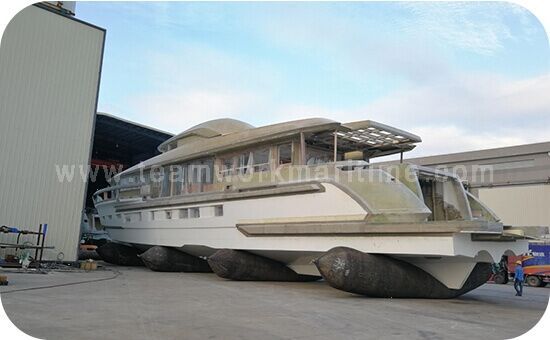

Teamwork Maritime have wide heavy lifting airbags in capacities from 70 ton to over 1,000 ton per bag, when compress deformation reaches 70% and inner pressure reaches the rated working pressure. Teamwork Maritime has a selection of marine air bags with diameter 0.8m to 2.0m, and 6m to 20m in length to cover virtually all application.
