Chain

Open Link (Studless Link) and Stud Link chains are available in various strength grades. Open link chains can also be supplied with different link lengths from 3D to 5D to suit each specific design.

Contact Us

Feature

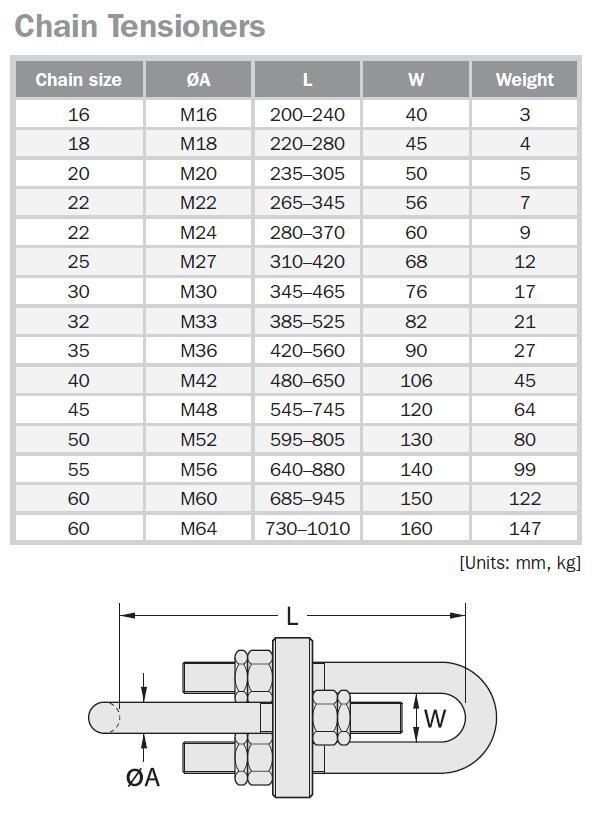

Open Link (Studless Link) and Stud Link chains are available in various strength grades. Open link chains can also be supplied with different link lengths from 3D to 5D to suit each specific design. Shackles and other accessories are all referenced to the nominal chain diameter for equivalent strength and typically of larger diameter material. However, it is common to use shackles the same size as the SL2 grade open link chain to provide an easily replaceable “weak link” in the system.

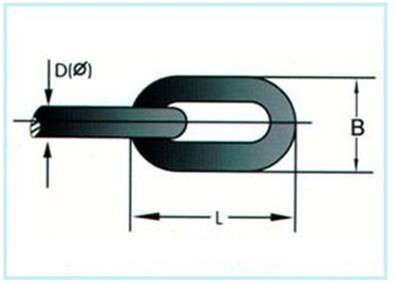

Studless Link Chain

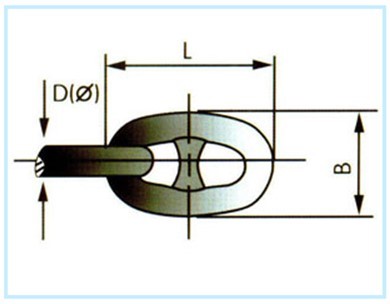

Stud Link Chain

Chain properties are based on Bureau Veritas rules, which are generally similar to Lloyds and ASB standards. However, chains can also be supplied to many other international standards such as DIN, BS and JIS if preferred. Please ask us for further advice on selecting and specifying chains.

DIAMETER(φ)		CHAIN LINK SIZE		BM1 U1 OPEN LINK CHAIN		BM2 U2 OPEN LINK CHAIN		BM3 U3 OPEN LINK CHAIN
DIAMETER(φ)		OUTSIDE LENGTH L	OUTSIDE WIDTH B	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD
INCH	MM	MM	MM	KN	KN	KN	KN	KN	KN
1/2	12.5	75	45	28.75	57.81	41.20	82.60	56.40	112.80
9/16	14	84	50.4	34.78	69.93	51.00	101.90	70.76	141.51
5/8	16	96	57.6	47.10	94.72	66.20	132.30	92.42	184.83
11/16	17.5	105	63	56.35	113.31	78.89	157.78	110.55	221.10
3/4	19	114	68.4	66.42	133.57	93.60	187.20	130.32	260.64
13/16	20.5	123	73.8	77.33	155.49	108.64	217.27	151.70	303.42
7/8	22	132	79.2	89.06	179.08	125.40	250.90	174.40	349.40
15/16	24	144	86.4	105.98	213.25	149.90	298.90	207.90	415.80
1-1/16	26	156	93.6	124.38	250.12	175.40	350.80	244.00	488.00
1-1/8	28	168	100.8	144.26	290.08	203.80	406.70	283.00	566.00
1-3/16	30	180	108	165.60	333.00	234.20	467.50	324.90	649.80
1-1/4	32	192	115.2	188.42	378.88	265.60	531.20	369.60	739.30
1-5/16	34	204	122.4	212.70	427.72	299.90	599.80	417.30	834.60
1-7/16	36	216	129.6	238.46	479.52	336.10	672.30	467.80	935.70
1-1/2	38	228	136.8	265.70	534.28	374.40	748.70	521.30	1042.50
1-9/16	40	240	144	294.40	592.00	414.50	829.10	577.60	1155.20
1-5/8	42	252	151.2	324.58	652.68	457.70	915.30	636.80	1273.60
1-3/4	44	264	158.4	356.22	716.32	502.70	999.60	698.90	1398.00
1-13/16	46	276	165.6	389.34	782.92	548.80	1097.60	763.90	1527.80
1-7/8	48	288	172.8	423.94	852.48	597.80	1195.60	831.70	1663.50
2	50	300	180	460.00	926.09	648.80	1239.60	902.50	1805.00
2-1/16	52	312	187.2	497.54	1000.48	697.63	1395.26	976.14	1952.28
2-1/8	54	324	194.4	536.54	1078.92	752.33	1504.66	1052.68	2105.36
2-3/16	56	336	201.6	577.02	1160.32	809.09	1618.18	1132.10	2264.20
2-5/16	58	348	208.8	618.98	1244.68	867.91	1735.82	1214.40	2428.80
2-3/8	60	360	216	662.40	1332.00	928.80	1857.60	1299.60	2599.20
2-7/16	62	372	223.2	707.30	1422.28	991.75	1983.50	1387.68	2775.36
2-1/2	64	384	230.4	753.66	1515.52	1056.77	2113.54	1478.66	2957.32
2-9/16	66	396	237.6	801.50	1611.72	1123.85	2247.70	1572.52	3145.04
2-11/16	68	408	244.8	850.82	1710.88	1192.99	2385.98	1669.26	3338.52
2-3/4	70	420	252	901.60	1813.00	1264.20	2528.40	1768.90	3537.80

D(φ) DIAMETER		CHAIN LINK SIZE		AM1 U1 STUD LINK CHAIN		AM2 U2 STUD LINK CHAIN		AM3 U3 STUD LINK CHAIN
D(φ) DIAMETER		OUTSIDE LENGTH	OUTSIDE WIDTH	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD
INCH	MM	MM	MM	KN	KN	KN	KN	KN	KN
1/2	12.5	75	45	46	66	66	92	92	132
9/16	14	84	50.4	58	82	82	116	116	165
5/8	16	96	57.6	76	107	107	150	150	216
11/16	17.5	105	63	89	127	127	179	179	256
3/4	19	114	68.4	105	150	150	211	211	301
13/16	20.5	123	73.8	123	175	175	244	244	349
7/8	22	132	79.2	140	200	200	280	280	401
15/16	24	144	86.4	167	237	237	332	332	476
1-1/16	26	156	93.6	194	278	278	389	389	556
1-1/8	28	168	100.8	225	321	321	449	449	642
1-3/16	30	180	108	257	368	368	514	514	735
1-1/4	32	192	115.2	291	417	417	583	583	833
1-5/16	34	204	122.4	328	468	468	655	655	937
1-7/16	36	216	129.6	366	523	523	732	732	1050
1-1/2	38	228	136.8	406	581	581	812	812	1160
1-9/16	40	240	144	448	640	640	896	896	1280
1-5/8	42	252	151.2	492	703	703	981	981	1400
1-3/4	44	264	158.4	538	769	769	1080	1080	1540
1-13/16	46	276	165.6	585	837	837	1170	1170	1680
1-7/8	48	288	172.8	635	908	908	1270	1270	1810
2	50	300	180	686	981	981	1370	1370	1960
2-1/16	52	312	187.2	739	1060	1060	1480	1480	2110
2-1/8	54	324	194.4	794	1140	1140	1590	1590	2270
2-3/16	56	336	201.6	851	1220	1220	1710	1710	2430
2-5/16	58	348	208.8	909	1290	1290	1810	1810	2600
2-3/8	60	360	216	969	1380	1380	1940	1940	2770
2-7/16	62	372	223.2	1030	1470	1470	2060	2060	2940
2-1/2	64	384	230.4	1100	1560	1560	2190	2190	3130
2-9/16	66	396	237.6	1160	1660	1660	2310	2310	3300
2-11/16	68	408	244.8	1230	1750	1750	2450	2450	3500
2-3/4	70	420	252	1290	1840	1840	2580	2580	3690
