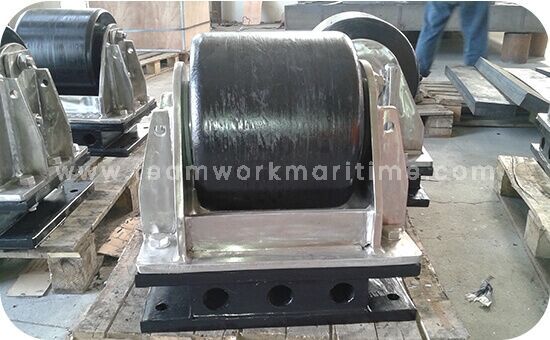

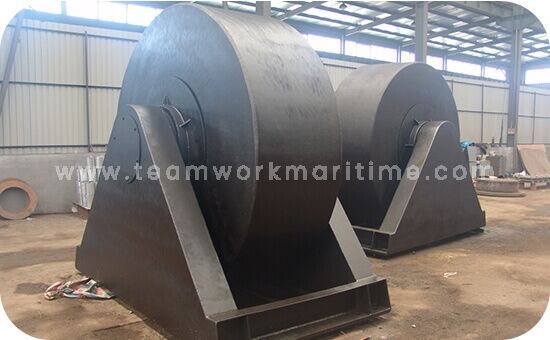

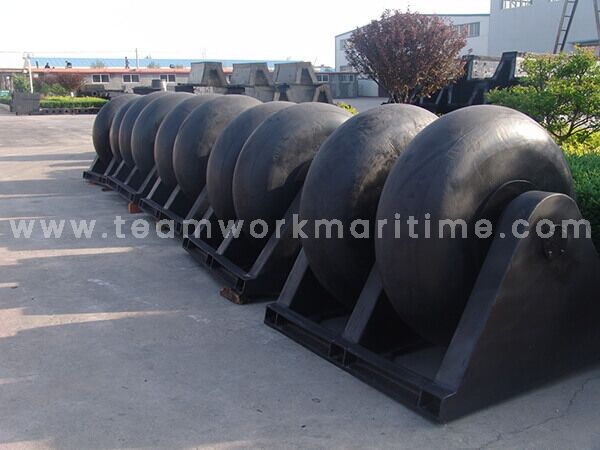

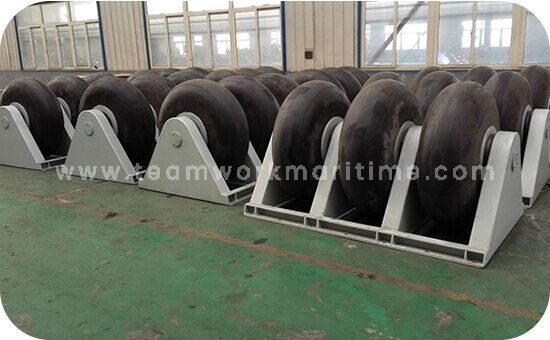

Roller Fender
Roller Fender
Roller Fenders are usually installed to guide ships in restricted spaces like walls of dry docks. They can also be used on corners and lock entrances where lower energies are needed.
General Details
Specification



Summary

Roller Fenders are usually installed to guide ships in restricted spaces like walls of dry docks. They can also be used on corners and lock entrances where lower energies are needed. Roller Fenders use stainless steel bearing and composite which give a very low rolling resistance and require virtually zero maintenance.

Features

● SGood energy absorption

● Gentle contact face

● Low rolling resistance

● Use singly or in multiple stacks

● Composite and stainless steel bearings

● Low maintenance frame design



Application

● Dry-dock entrances and walls

● Lock approaches

● Some exposed corners and entrances

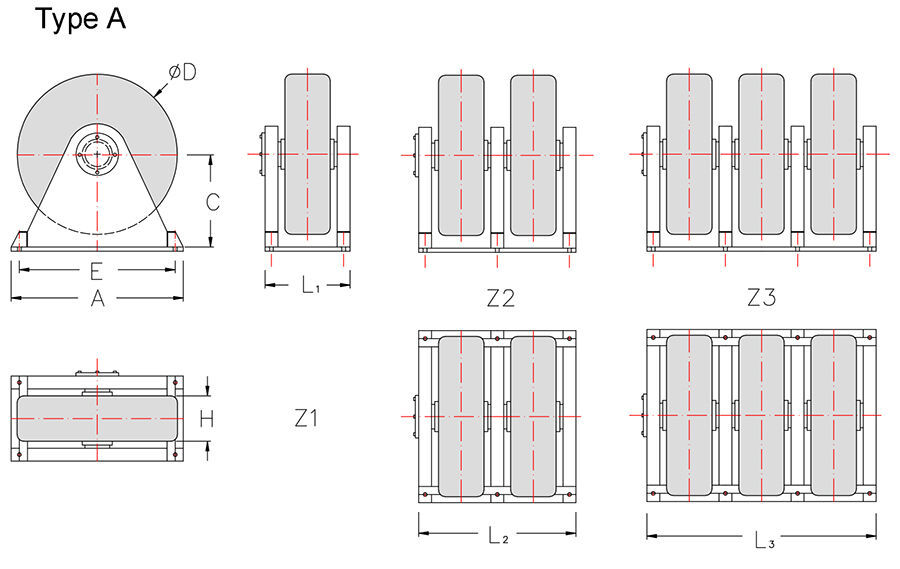

TEAMWORK Roller Fender—RA Type
TypeSpecificationZ1Z2Z3Note
DHAECL1WeightL2WeightL3Weight
TW-RA600×2006002006956203204201277702451120365

Other Specification

available upon request.

TW-RA 750×2507502508707754005102499355011360735
TW-RA 900×3009003001040930480610465112087816301291
TW-RA 1200×40012004001380124064082010451500204121803005
TW-RA 1500×500150050017401550800101020111850391526905784
TW-RA 1800×600180060020801860960121034412215670132209891
TW-RA 2100×700210070024402205115514105610259010925377015895
TW-RA 2400×800240080027702480128016108115295015701429023300

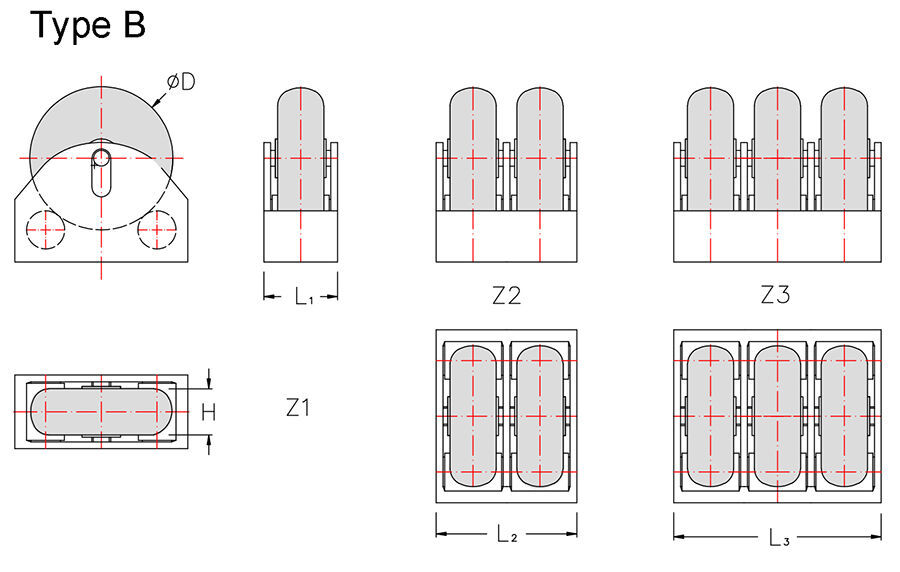

TEAMWORK Roller Fender—RB Type
TypeD(mm)H(mm)Max. Deflection (mm)Z1Z2Z3
Reaction      Force    kNEnergy      Absorption    KNmReaction      Force    kNEnergy      Absorption    KNmReaction      Force    kNEnergy      Absorption    KNm
TW-RB1200×40012004004312484849696744144
TW-RB 1500×5001500500541388947761871166281
TW-RB 1800×60018006006505591621173231676485
TW-RB 2100×700210070076276125715195142283770
TW-RB 2400×8002400800851990383198076629691147
